A test lamp finds what a code reader never will

The best 12 V circuit testers for 2026

A test lamp answers the question a scan tool cannot: is there power at this wire, right now. The old incandescent probe draws enough current to prove a circuit can carry a load, which is exactly what makes it unsuitable near sensitive control modules; an LED tester draws almost nothing and is the safer default on modern cars. The details that matter are the probe tip — sharp enough to back-probe a connector without piercing insulation — the lead length to reach a battery from a rear light, and whether the tool also reads continuity on a dead circuit. We compare lamp type, stated voltage range, probe design, lead length and functions.

By Jean-Benoit Buisson

What we recommend

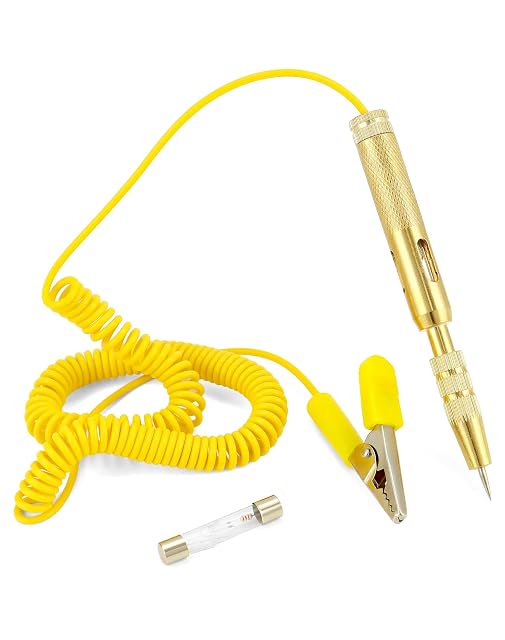

QWORK WD40934 test lamp

The cheapest diagnostic tool that exists: a lamp, a probe and a crocodile clip, answering the one question a code reader cannot.

Voltages
6 V, 12 V and 24 V circuits, stated
Probe
Fixed steel needle design, stated as protecting the needle
Materials
Copper handle, chrome-plated carbon steel probe, stated
Amazon reference
B0CWH1SZPZ
EAN
0795973641304
- Answers "is there power here, right now" for the price of a coffee
- Covers 24 V as well as car voltages
- An incandescent-style lamp draws more current than an LED tester, which is not ideal near control modules
Best for: Fuses, lights, and any circuit where you need to know whether power arrives.

Search Amazon for this model

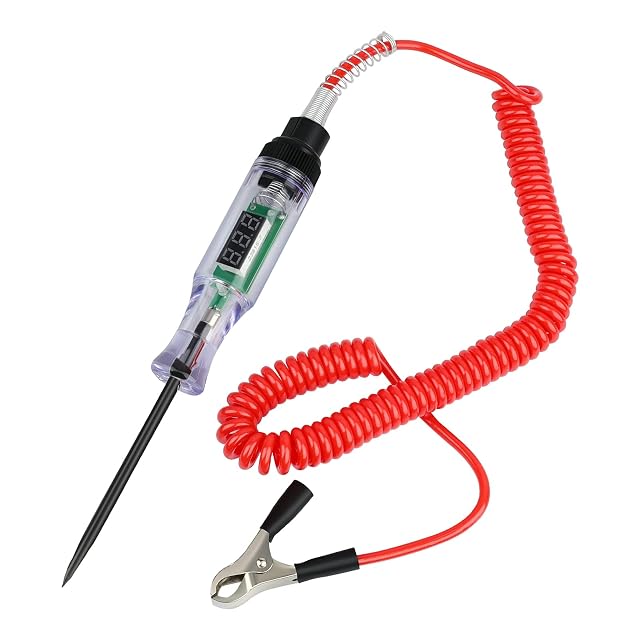

Xastro DB-002 digital test pen

A test lamp with a number on it: the display shows the voltage present rather than only whether something is there.

Range
3–24 V, stated
Display
LED digital voltage readout with test light, stated
Probe
Flexible spring wire, stated
Connection
Crocodile clip lead, stated
Amazon reference
B0BZ827S9Q
EAN
0826389989824
- A voltage reading as well as a light — enough to spot a volt drop that a lamp would not show
- A flexible probe reaches where a rigid needle cannot
- A digital tester draws very little current, so it does not load the circuit the way a lamp does
Best for: Chasing a voltage drop, where the number matters and not just the light.

Check price on Amazon

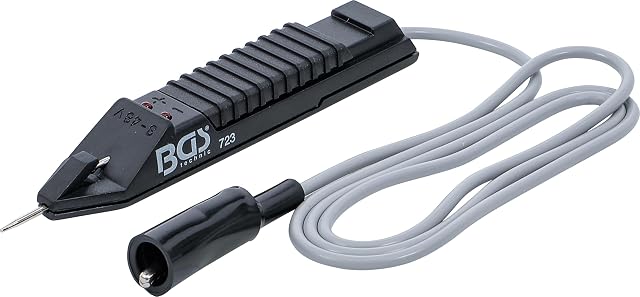

BGS 723 diode test lamp

A workshop tester covering 3 to 48 V with a piercing function — the tool for finding a break in a loom rather than a fuse.

Range
3–48 V, stated
Type
Diode test lamp with LED indication, stated
Function
Piercing function for insulated cables, stated
Amazon reference
B00154CKA8
EAN
4026947007236
- 48 V covers commercial and some hybrid auxiliary systems as well as car circuits
- An LED diode design draws far less current than an incandescent lamp — safer around modules
- A piercing probe leaves a hole in the insulation, which must be sealed afterwards
Best for: Tracing a fault along a loom, where the wire cannot be reached at a connector.

≈ $33
Check price on Amazon

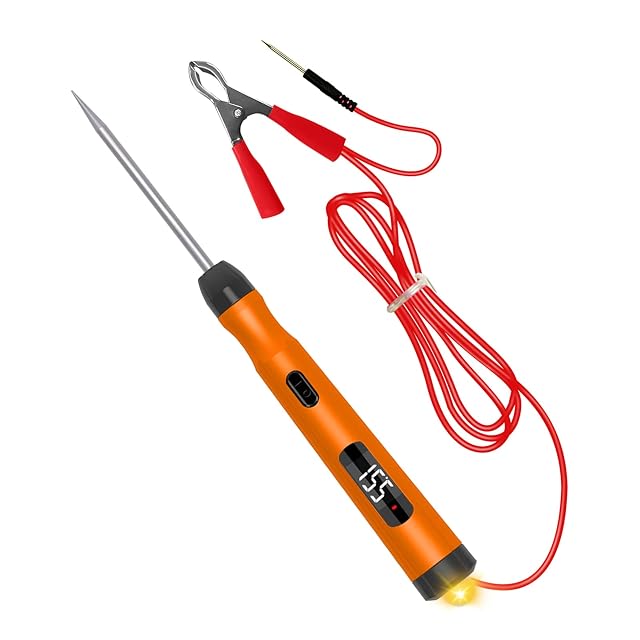

KAISAL KAISAL5111113 digital tester

The one that tells you which side of the circuit you are on: polarity indication alongside a live voltage display.

Range
DC 6 V, 12 V and 24 V, stated
Display
Live voltage on a digital LED readout, plus a test lamp, stated
Polarity
Distinguishes positive from negative quickly, stated
Extra
Frequency indication, stated
Amazon reference
B0B11NBHDS
EAN
0728990658994
- Polarity indication removes the most common confusion when probing an unfamiliar loom
- A live voltage display rather than a lamp alone
- Frequency indication on a test pen is a niche function without a specification
Best for: Working on an unfamiliar loom, where knowing positive from negative saves the fuse.

Search Amazon for this model

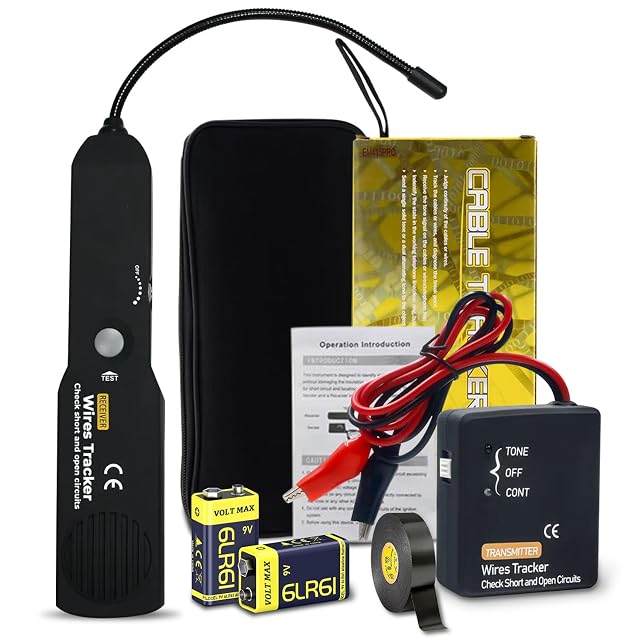

CrysGuard EM415PRO wire tracer, 6–42 V

A transmitter and probe that follows a hidden wire without touching its insulation.

Type
Wire tracer — transmitter and receiver probe
Method
Non-invasive; traces behind dashboards, panels and carpets
Range
6–42 V DC
Continuity
CONT mode — one of two tools here that publish continuity
Probe
7 in (178 mm), flexible
Supplied
Test leads, alligator clips, 9 V batteries, insulation tape, carrying case
Stated vehicles
Cars, motorcycles, trailers, motorhomes, boats
Price
$23.99 — the most expensive tool on this shelf
Voltage reading
None — it indicates rather than measures
Lead length
NOT PUBLISHED
Signal frequency
NOT PUBLISHED
Battery life
NOT PUBLISHED
Amazon reference
B0F9RW3JKB
EAN
0850076158002
- The only non-invasive tool here — nothing is pierced, cut or unplugged
- The only one that finds an open circuit in the middle of a loom
- Not a voltmeter: it indicates rather than reads a voltage
Best for: A break somewhere inside a loom, found without cutting into it

Check price on Amazon

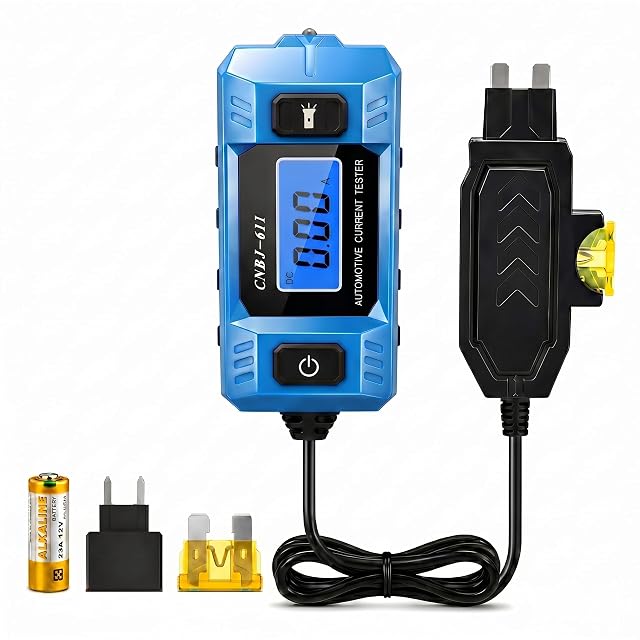

VIREVO Inline fuse current monitor, 20 A

The cheaper of two near-identical draw testers, and the one that names the fuse standards it fits.

Type
Inline fuse current monitor — a parasitic draw tester
Range
20 A, 48 V DC
Resolution
0.01 A (10 mA)
Display
Backlit LCD, with DC / −DC direction
Light
Built-in LED work light
Fuse standards
Mini (ATM) and Standard (ATO/ATC) blade
Method
The vehicle’s own fuse is inserted into the tester
Price
$12.99 — $4.00 below the identical XENIVO tester
Accuracy
NOT PUBLISHED
Measurement burden
NOT PUBLISHED
Voltage reading
None
Continuity
None
Amazon reference
B0H1C8WV7Q
EAN
0768231914823
- Finds an overnight battery drain, which no test lamp on this shelf can
- $4.00 below the identical XENIVO tester and publishes four things more
- No accuracy figure, only a 0.01 A resolution
Best for: A battery that is flat every third morning, and a fuse box to work through

Check price on Amazon

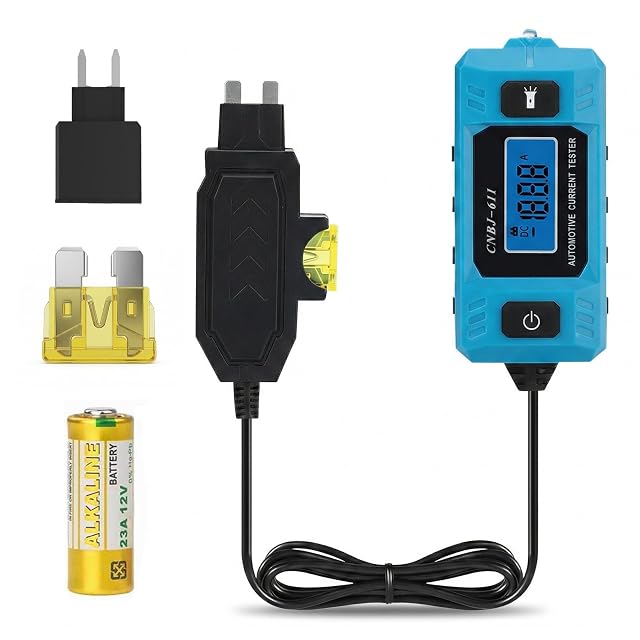

XENIVO Inline fuse current tester, 20 A

A parasitic draw tester whose listing explains the one safety point the method depends on.

Type
Inline fuse current tester — a parasitic draw tester
Range
0.01 A to 20 A, 48 V
Factory protection
The vehicle’s own fuse stays in circuit — stated, and only here
Battery
No need to disconnect it, so the modules stay asleep
Fuses
Mini and Standard blade; standards NOT NAMED
Method
Plugs into the fuse slot, so contact cannot be lost
Price
$16.99 — $4.00 above the VIREVO tester
Accuracy
NOT PUBLISHED
Backlight
NOT PUBLISHED
Direction indication
NOT PUBLISHED
Work light
None
Voltage and continuity
None
Amazon reference
B0GJB1PMPQ
EAN
0768330934685
- The only listing here that explains why the car’s own fuse stays in circuit
- Measures without disconnecting the battery, so the modules stay asleep
- $4.00 more than an identical tester that publishes more
Best for: A drain hunt done properly, with the circuit still protected

Check price on Amazon

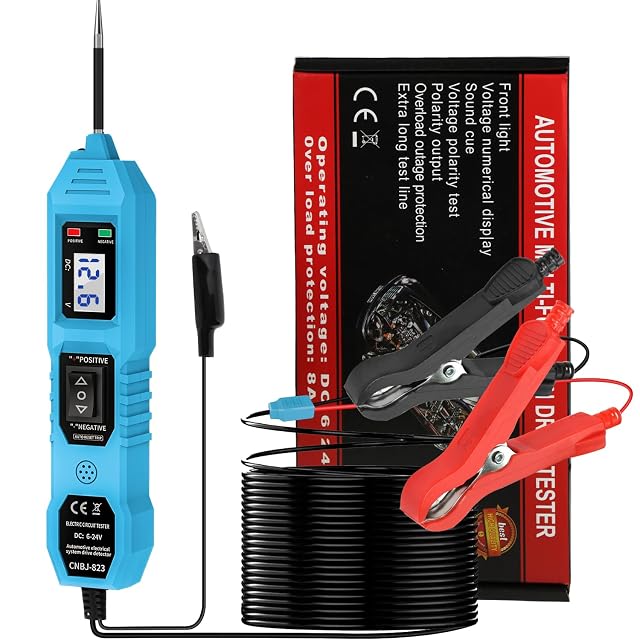

Ansbell 6–36 V probe, ±0.2 V, 4.5 m (15 ft) lead

The only tester here with a published accuracy, and the only one with a buzzer.

Range
6–36 V DC stated in the bullets; 6, 12 and 24 V in the title
Accuracy
±0.2 V — the only accuracy figure on this shelf
Display
Backlit LCD
Lead
14.7 ft (4.48 m) — the longest here
Alarm
Buzzer on overload — the only one on this shelf
Light
Built-in LED
Functions
Voltage, continuity, polarity; short, open and bad earth detection
Power
From the battery through its own clips
Published procedure
Four steps, in order — the only listing here that gives one
Lamp
None — it reads rather than loads
Probe tip
NOT DESCRIBED
Overload threshold
NOT PUBLISHED
Amazon reference
B0F5WJ6QHD
EAN
0721545540423
- The only published accuracy on this shelf — ±0.2 V, enough to see a volt drop
- A 4.48 m (15 ft) lead, twice the next longest, so the clip stays put
- No lamp, so it cannot prove a circuit will carry a load
Best for: Chasing a volt drop from the battery to a rear light, on one clip-up

Check price on Amazon

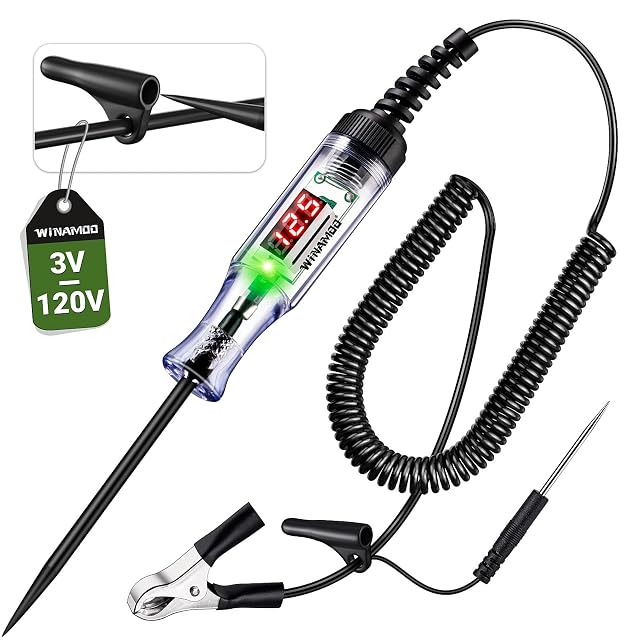

WINAMOO WITL111B, 3–120 V, extra probe

The widest voltage range on this shelf, with the one warning that range makes necessary.

Range
3–120 V DC — the widest on this shelf
Mains exclusion
Stated not for household AC outlets or mains voltage — only here
Display
LED digital, 0.1 V resolution
Polarity
Dual-color diode — red positive, green negative
Probe
Sharp stainless steel, pierces insulation; anti-lost sleeve
Second probe
On the wire, for where a clip cannot reach
Clip
Large alligator, for one-handed use
Body
Transparent ABS, stated shatter-proof
Lead length
NOT PUBLISHED — the cheaper sibling states 96 in
Accuracy
NOT PUBLISHED
Continuity
None
Insulation rating
NOT PUBLISHED
Amazon reference
B0FQHWQYL3
EAN
0633337513839
- 3–120 V DC, the widest range on this shelf by a factor of two and a half
- The only listing here that states it is not for mains voltage
- No lead length, which its own $8.95 sibling publishes
Best for: A 48 V mild hybrid and everything below it, with the clip out of reach

Check price on Amazon

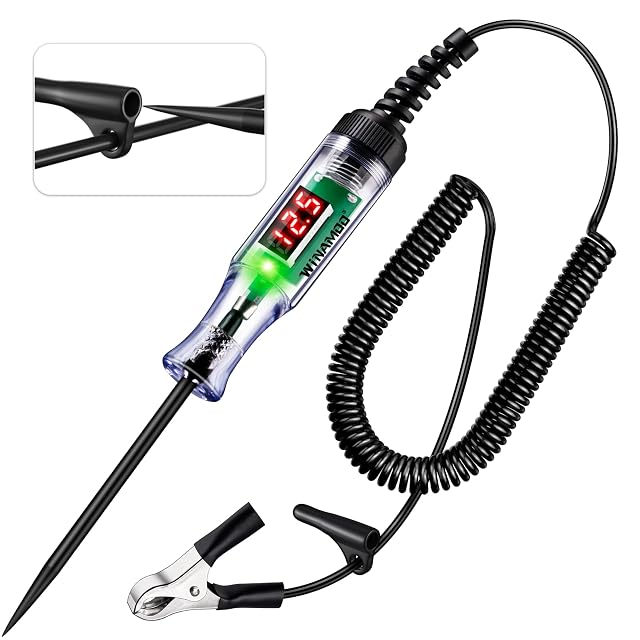

WINAMOO WITL111A, 3–48 V, 2.44 m (8 ft) lead

A digital test light with a published lead length, for under nine dollars.

Range
3–48 V DC
Display
LED digital, 0.1 V resolution
Polarity
Dual-color diode — red positive, green negative
Lead
96 in (2.44 m) spring wire
Probe
Sharp stainless steel, pierces insulation; integrated anti-lost sleeve
Clip
Large alligator, for one-handed use
Body
Transparent ABS, stated shatter-proof
Weight
200 g (7.1 oz) — the only weight published on this shelf
Price
$8.95
Accuracy
NOT PUBLISHED
Continuity
None
Lamp
None — it reads rather than loads
Amazon reference
B0D8PXNPYH
EAN
0633337513730
- Reads from 3 V, which is where sensor and signal circuits live
- Publishes a 96-inch spring lead, which eight tools here do not
- A piercing probe, where this shelf asks for back-probing
Best for: Engine-bay and cabin circuits from 3 V up, on a coiled lead

Check price on Amazon

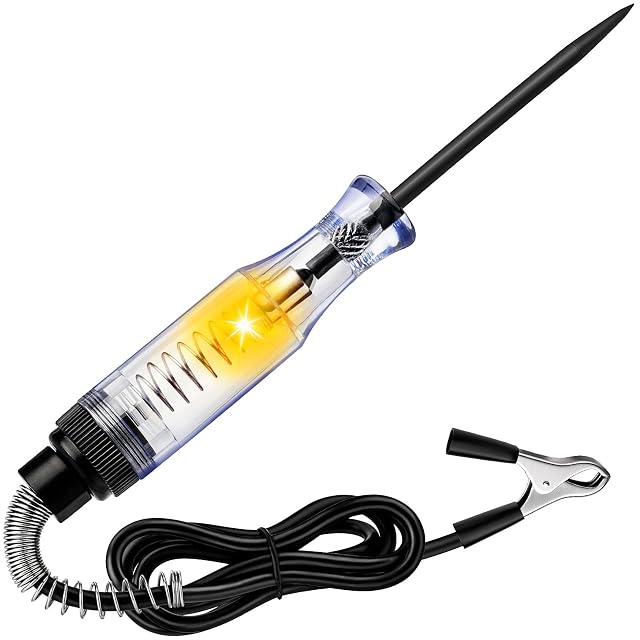

FEAOXYO 6–24 V lamp tester, 0.99 m (3.2 ft) lead

The cheapest tool here, and one of two with a bulb rather than a diode.

Range
6–24 V DC
Indicator
Filament bulb; brightness varies with the measured voltage
Loads the circuit
Yes — which is how it proves a circuit can carry current
Lead
39 in (0.99 m) polyurethane, stated flexible and robust
Probe
Long sharp stainless steel; pierces insulation
Handle
Insulated, non-slip, transparent
Clips
Large alligator
Price
$4.95 — the cheapest tool on this shelf
Bulb rating
NOT PUBLISHED
Voltage reading
None
Polarity indication
None
Probe sleeve
None
Amazon reference
B0DX5GMXYH
EAN
0649226718124
- A bulb, so it proves a circuit can actually carry a load
- Brightness varies with voltage, which shows a volt drop at a glance
- Draws real current, so it must stay away from module outputs
Best for: Lights, motors, horns and fuses, where a reading is not enough

Check price on Amazon

Need by need, within 12 V circuit testers

Covering the whole vehicle network

The voltage range covered decides which circuits can be tested. A limited tester stays silent on the circuits it does not cover, which looks like an absence of current.

VIREVO inline current tester

Reaching earth at the far end of the vehicle

An earth clip on a one-meter lead forces you to work near the battery. The stated lead length decides what can be tested at the rear without an improvised extension.

BGS 723

Who each family suits, across 12 V circuit testers

Fault finding: Checking for voltage at a given point is the starting point of any electrical diagnosis. It is the whole purpose of this aisle.
Earth check: A failing earth causes erratic symptoms nothing else explains. The tester reveals it in seconds.
Recent vehicles: Modern control modules cope badly with a probe that pierces the insulation or with a parasitic load. Testers with a high current draw are to be avoided.

What you gain and what you give up, on 12 V circuit testers

Test lamp against electronic tester: An incandescent lamp draws a current that can disturb a module-driven circuit; a LED tester draws almost nothing and does not load the circuit.
Simplicity against information: A tester says whether there is voltage, not its value or its quality. A multimeter says more and takes more handling.
Piercing probe against harness integrity: Piercing the insulation gives immediate access and opens a door to corrosion. Bypass clips avoid that lasting damage.

Frequent questions on 12 V circuit testers

Can a test lamp damage the electronics?

An incandescent lamp draws a noticeable current that can disturb or damage a circuit driven by a control module. LED testers are far more prudent on recent vehicles.

How do I test an earth?

By connecting the tester to the battery positive and probing the suspect earth point. A sound earth lights the tester; a failing one does not light it, or only weakly.

Should I pierce the insulation of wires?

It is inadvisable: the hole lets moisture in and corrosion sets in months later. Bypass clips test without piercing.

Does the tester say whether the voltage is sufficient?

No: it indicates a presence, not a value. A voltage too low to run a component can be enough to light the tester.

Can a circuit be tested under load?

That is precisely what reveals bad connections: a correct voltage with no load collapses as soon as the circuit draws current. A simple tester does not show that collapse.

Should the battery be disconnected first?

No for a voltage-presence test, which assumes the circuit is live. Any work on the harness, on the other hand, is done with the battery disconnected.

Does a multimeter replace the tester?

It gives the value and takes two hands and a selector position. The tester is quicker for a simple presence of voltage.

How do you find a parasitic drain?

Measure the quiescent current between the terminal and the clamp, doors shut and modules asleep, which sometimes means half an hour of waiting. Pulling one fuse at a time then locates the offending circuit.

What stays with you, on 12 V circuit testers

An incandescent test lamp draws a current that can disturb a control module: prefer a LED tester on a recent vehicle. Never pierce the insulation, corrosion sets in months later — and a presence of voltage says nothing about its value under load.

Summed up: 12 V circuit testers

Price: $4.95 to $23.99, on 5 of the 11 models.

The full table of 12 V circuit testers

A column is opened only if four tools in five publish its value. Otherwise the table would compare what nobody has measured.

Model	Price	Range
BGS 723	$33	3–48 V, stated
Ansbell CNBJ	—	6–36 V DC stated in the bullets; 6, 12 and 24 V in the title
CrysGuard EM415PRO	—	6–42 V DC
FEAOXYO FETL001A	—	6–24 V DC
WINAMOO WITL111B	—	3–120 V DC — the widest on this shelf
WINAMOO WITL111A	—	3–48 V DC
Xastro DB-002	—	3–24 V, stated
VIREVO inline current tester	—	20 A, 48 V DC
QWORK WD40934	—	—
KAISAL5111113	—	DC 6 V, 12 V and 24 V, stated
XENIVO CNBJ-611	—	0.01 A to 20 A, 48 V

Sources, and the way we rank

Specifications: manufacturer sheets for garage tools and the matching Amazon product pages. Prices and availability: Keepa. Every figure in this table names its source.

Most recent revision in this category: October 6, 2026.

The method applied to 12 V circuit testers

Prices quoted in these summaries are dated readings. The live price is shown next to each product.
