A conductance reading is an estimate, not a load test
A modern handheld tester does not load the battery: it measures conductance and converts it into an estimated state of health against the cold-cranking figure you type in. That makes it fast, repeatable and dependent on the number you enter — the CCA printed on the label, in the rating system the maker used. Two things then matter. The first is chemistry support: flooded, AGM, EFB, gel and, on some models, lithium, all charge and read differently. The second is whether the tool also tests the starting and charging systems, which is where most no-start faults actually live. We compare chemistries, stated CCA range, system tests, printing or app export, and 12 V against 24 V.

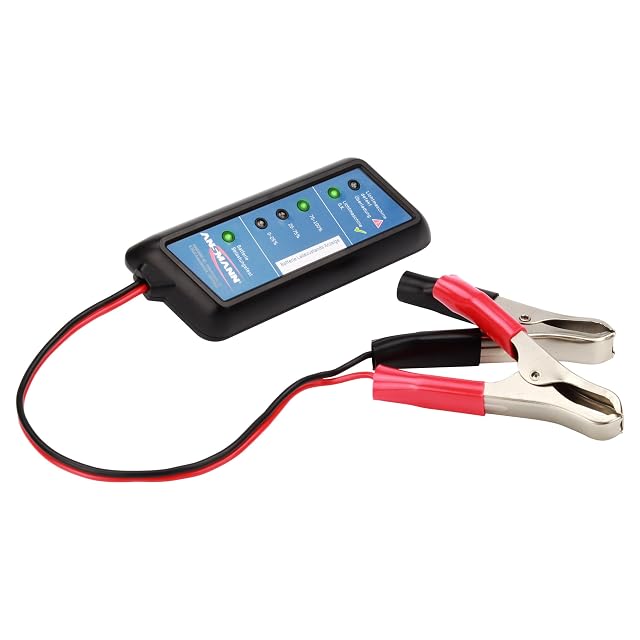

12 V starter batteries · LED indicators, no display · color-coded clamps · no settings to enter
The simplest tester on this shelf: colored LEDs rather than a screen, no figures to enter, and a verdict a driver can read without knowing what CCA means.
Best for: A driver who wants a yes-or-no answer before calling anyone.
≈ $9
6/12/24 V · 100–2000 CCA entry · 2–220 Ah · battery, cranking and charging tests
A three-voltage tester that covers 24 V as well as car batteries, with cranking and charging system tests alongside the battery reading.
Best for: A household with a van or a motorhome as well as a car.

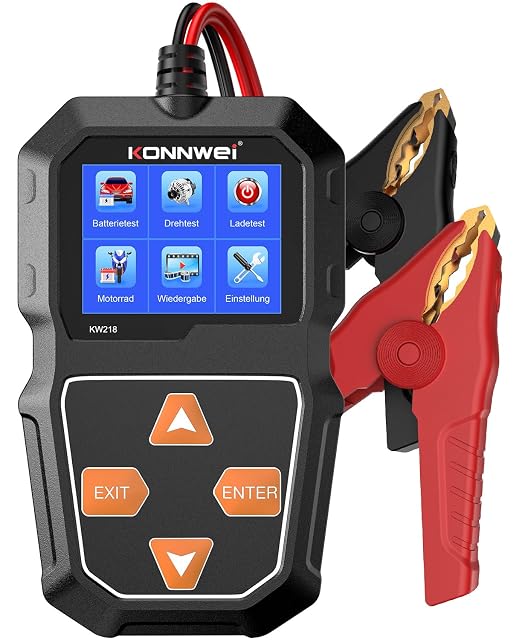

6/12 V · 100–2000 CCA · flooded, AGM flat plate and more · color LCD · alloy clamps
The tester that names the chemistries it supports and reports internal resistance alongside voltage — the two things that separate a diagnosis from a light.
Best for: Someone who wants the underlying numbers rather than a pass or fail.

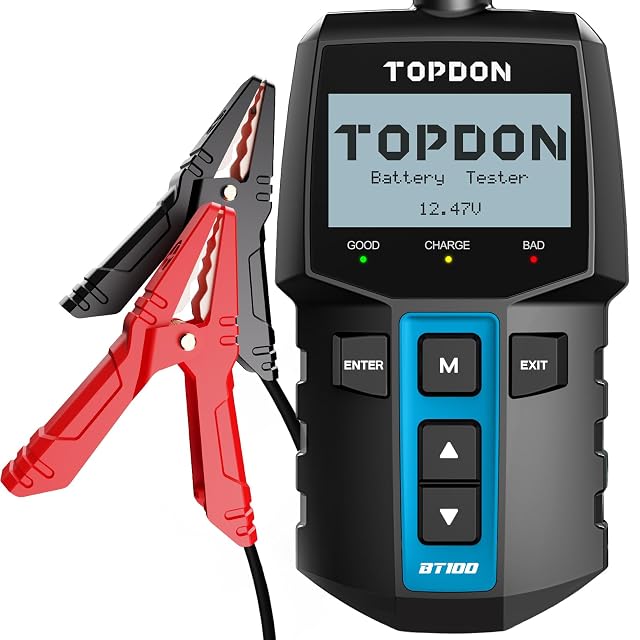

12 V lead-acid including AGM · 100–2000 CCA · battery, cranking and charging tests · no configuration
A 12 V tester built around one idea: three tests, no menus. TOPDON states it as a tool for people tired of specifications, and the interface follows.
Best for: Buying a used car, and checking your own before winter.
≈ $78

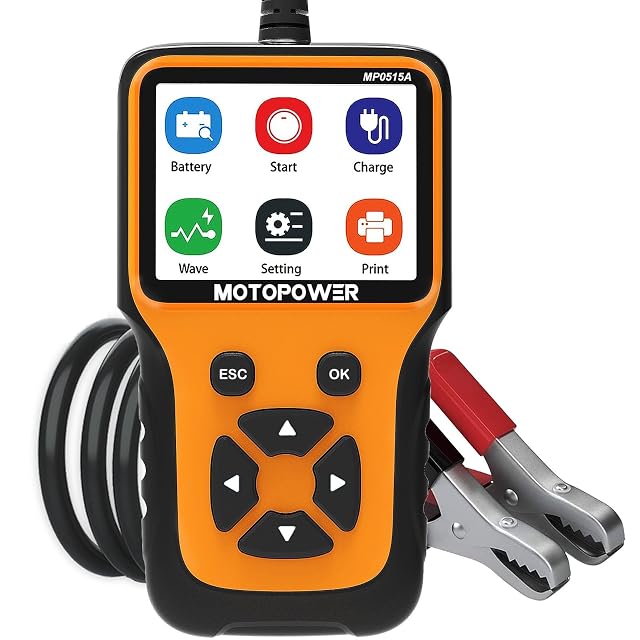

12 V · 100–2000 CCA · battery health, cranking and charging tests · real-time waveform · data printing
The one that prints. Real-time waveform display and printed results move this from a driveway check to something you can hand to somebody else.
Best for: Anyone testing batteries for other people, or keeping records across a small fleet.
≈ $36
The range of cranking current covered decides which batteries can be tested. Beyond it, the tool returns no usable verdict.
A tester that only knows flooded lead gives a false verdict on an absorbent-glass-mat battery. The stated technologies decide whether the diagnosis is valid on a recent vehicle.
A verdict shown and then lost is no use in front of a garage or a seller. A stated printout or log changes what the test is worth on a second-hand vehicle.
Most testers work with the battery in place. Disconnecting loses the memory of some modules.
The one printed on the battery label. A wrong value completely falsifies the tool's verdict.
No: open-circuit voltage says nothing about the ability to deliver current. That is exactly what a conductance tester measures.
A test straight after charging gives a high, misleading surface voltage. Waiting, or briefly switching on the lights, settles the reading.
Many measure the voltage with the engine running, which reveals insufficient or excessive charging. It is a useful complement.
Below a certain threshold the tool refuses or gives a distorted verdict. It has to be recharged before testing.
An oxidized contact falsifies the reading. Cleaning the terminals first is a step in its own right.
Conductance testers measure in place, which is their whole point. A measurement on a vehicle with a load still active does give a low result without the battery being at fault.
Open-circuit voltage says nothing about the ability to deliver current: that is what the tester measures. Enter the value printed on the battery — a wrong value falsifies the whole verdict — and do not test straight after charging, the surface voltage misleads.
There is no table here, and the reason is in the listings. The figure published most often across these 5 products is CCA range, given by 3 of them — short of the four in five a column needs to compare rather than to display gaps. Each product page says what its own maker published.
Specifications: manufacturer sheets for garage tools and the matching Amazon product pages. Prices and availability: Keepa.
Most recent revision in this category: September 4, 2026.
